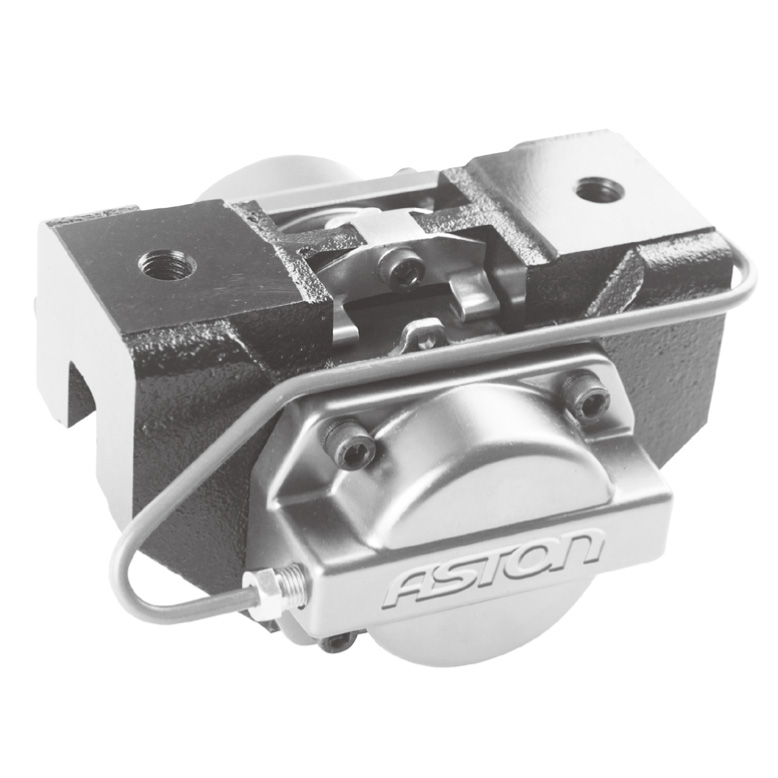

Penumatic Hydraulic Caliper Brake
SPECIFICATION
- Durable for long term. Stable performance and dissipating heat of the disc brakes which withstand frequent uses.
- Suitable for rugged environment. Brakes are resistant to dust and wetting, and withstand high ambient temperatures.
- Wide application. Braking forces can be arbitrarily adjusted. The range of braking force is widened
- Economic, brake pads are easy to change and affordable.
- Both left and right types are available.
- Torques can be varied by regulating the supply pressure.
| Size | DBM 10 | DBM 20 | |
|---|---|---|---|
| Sizes of cylinders | 2 1/8" | 2 1/8" | |
| Area of cylinders | 22.88 cm2 | 22.88 cm2 | |
| Amount of operating Oil | About 2.5cc | About 2.5cc | |
| Operating oil pressures | Normal working | 50 kg/cm2 | 50 kg/cm2 |
| Maximum | 70 kg/cm2 | 70 kg/cm2 | |
| Disc thickness | 10 mm | 20 mm | |
| Disc 0. D. mm | 200↑ | 200↑ | |
| Unit Weight | 5 kg | 5.5 kg | |
- "Right Type" namely move the oil-inlet to the right side of DBM. Please indicate the left or right type When place the older.
- Brake oil requirementl Ordinary brake oil, DOT3 or DOT4 or above.
DIMENSION
| Size | A | B | C | D | E | F | G | H | K | L | N | P | R | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBM 10 | 135 | 118 | 40 | 34 | 51 | 50 | 2 | 40 | 10 | 150 | 34 | 110 | 350 | 30 |
| DBM 20 | 145 | 128 | 50 | 34 | 51 | 50 | 2 | 40 | 20 | 150 | 34 | 110 | ... | 30 |
Warning: The initial torque on new units can be 30-50% less than the value on specification until friction face and friction disc are lapped or worn in.
* Aston Tech Ltd. reserve the right to change materials and specifications without prior notice.
