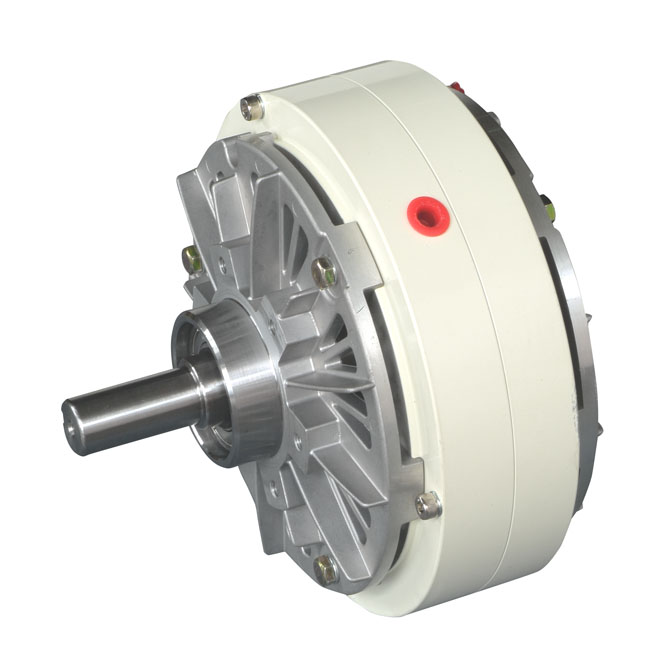

POB-100~600
SPECIFICATION
| Type | Fix torque Nm (kgfcm) | Capability (75°C) | Monent of lnterid (kg-m2) | Compelling air-cooling concessional slide rate of work | Weight (kg) | Max. speed of Rotation (r/min) | Weight of Magnetic Powder (g) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Electric Current (A) | Electric Power (W) | Attracting Time (S) | Air pressure (pa) | Air volume (m3/min) | Ratio (w) | ||||||
| POB-100 | 10(100) | 2.40 | 57.6 | 0.25 | 3.5 x 10-2 | 6 x 104 | 1.1 | 1,100 | 34 | 1,800 | 140 |
| POB-200 | 20(200) | 2.70 | 64.8 | 0.37 | 9.15 x 10-2 | 5 x 104 | 1.6 | 1,900 | 61 | 1,800 | 225 |
| POB-400 | 40(400) | 3.5 | 84 | 0.40 | 2.43 x 10-1 | 1.6 x 105 | 2.0 | 2,100 | 102 | 1,800 | 300 |
| POB-600 | 60(600) | 4.3 | 103 | 0.50 | 2.43 x 10-1 | 1.6 x 105 | 2.0 | 2,100 | 120 | 1,800 | 350 |
Remark :
- Compress air for cooling should be dry and de-oil.
- The idle torque of type should be less than 1% of fixed torque for POB-l00 / 200, and less than 2% for FOB-400 & 600.
- FOB-400 is custome-made product.

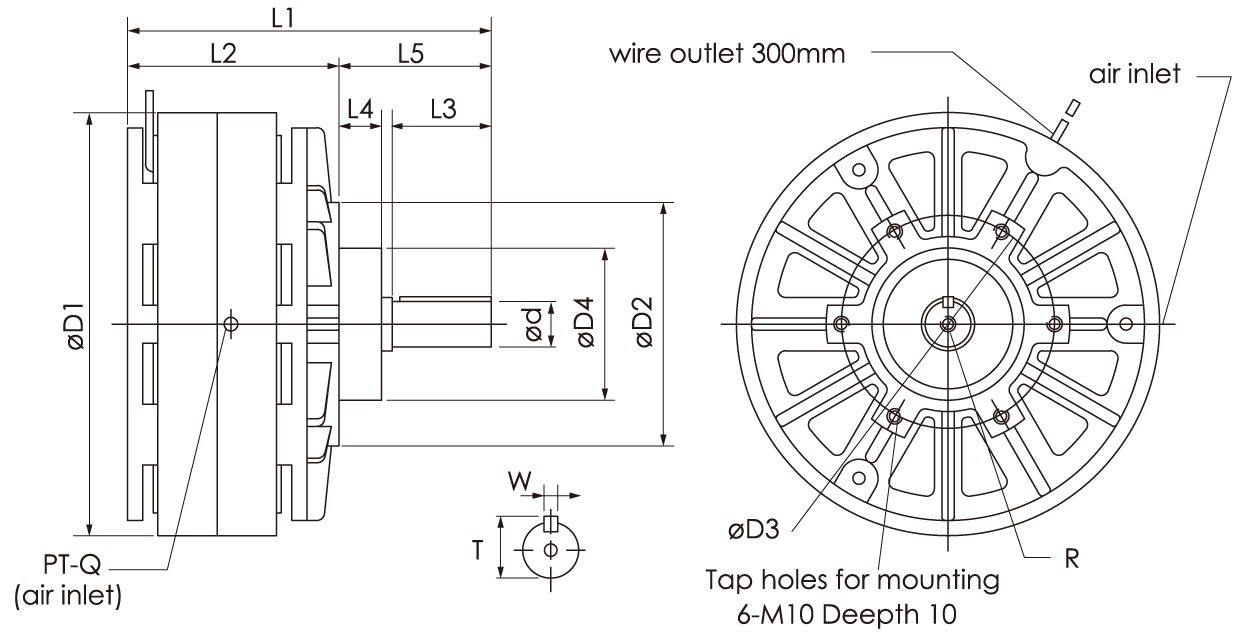

Dimension
| Type | L1 | L2 | L3 | L4 | L5 | D1 | D2 | D3 | D4 (G7) | Q (inch) | R | Axis body | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pathway | Depth | D (h7) | W (p7) | T (0-0.2) | |||||||||||
| POB-100 | 239 | 139 | 65 | 28 | 100 | 278 | 160 | 140 | 100 | 3/8 | M10 | 20 | 30 | 7 | 33 |
| POB-200 | 278 | 169 | 69 | 30 | 109 | 327 | 174 | 150 | 110 | 3/8 | M10 | 20 | 35 | 10 | 38.5 |
| POB-400 | 339 | 200 | 92 | 35 | 139 | 398 | 230 | 200 | 130 | 3/8 | M10 | 20 | 45 | 12 | 48.5 |
| POB-600 | 339 | 200 | 91 | 35 | 139 | 398 | 230 | 200 | 130 | 3/8 | M10 | 20 | 45 | 12 | 48.5 |
Remark : Dimension in mm.
- Aston Tech Ltd. reserve the right to change materials and specifications without prior notice.
