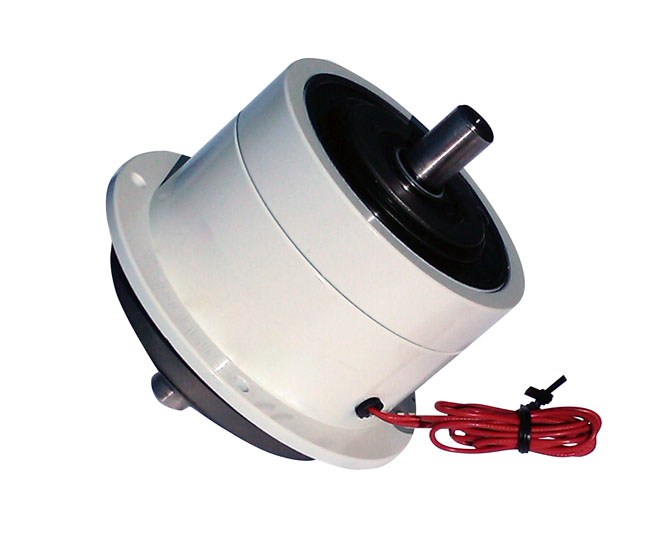

POC-0.05~010 (Mini Powder Clutch)
SPECIFICATION
| Type | Fix torque Nm (kgfcm) | Capability (75°C) | Monent of lnterid (kg-m2) | Weight (kg) | Max. speed of Rotation (r/min) | |||
|---|---|---|---|---|---|---|---|---|
| Electric Current (A) | Electric Power (W) | Attracting Time (S) | ||||||
| POC-0.05 | 0.5(5) | 0.35 | 8.4 | 0.02 | 2.1 x 10-1 | 1.7 x 10-1 | 0.67 | 1,800 |
| POC-0.1 | 1(10) | 0.47 | 11.3 | 0.03 | 3.46 x 10-1 | 4.6 x 10-1 | 0.88 | 1,800 |
| POC-0.2 | 2(20) | 0.55 | 13 | 0.055 | 6.80 x 10-1 | 1.03 x 10-1 | 1.27 | 1,800 |
| POC-0.5 | 5(50) | 0.8 | 19 | 0.055 | 1.83 | 4.0 x 10-1 | 2.3 | 1,800 |
| POC-010 | 10(100) | 1.0 | 24 | 0.09 | 5.3 | 1.1 | 4.1 | 1,800 |
Remark :
- Compress air for cooling should be dry and de-oil.
Dimension
| Type | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | D1 | D2 | D3 | D4 (G7) | D5 (g7) | D6 | D7 | d (g6) | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| POC-0.05 | 77 | 47 | 16.5 | 13.5 | 5.5 | 10.5 | 9 | 8.5 | 70 | 60 | 50 | 48 | 40 | 30 | 9 | 5 | 4.5 |
| POC-0.1 | 83 | 48.5 | 18.5 | 16 | 5.5 | 12 | 10 | 8.5 | 76 | 66 | 56 | 54 | 42 | 34 | 12 | 7 | 6.5 |
| POC-0.2 | 95 | 53 | 22.5 | 19.5 | 6.5 | 15 | 13 | 9.5 | 85 | 75 | 65 | 63 | 48 | 40 | 16 | 9 | 8.5 |
| POC-0.5 | 111 | 64 | 25 | 22 | 6 | 18 | 16 | 12 | 100 | 90 | 80 | 78 | 60 | 50 | 20 | 12 | 11.5 |
| POC-010 | As drawing above | ||||||||||||||||
Remark : Dimension in mm.
- Aston Tech Ltd. reserve the right to change materials and specifications without prior notice.
