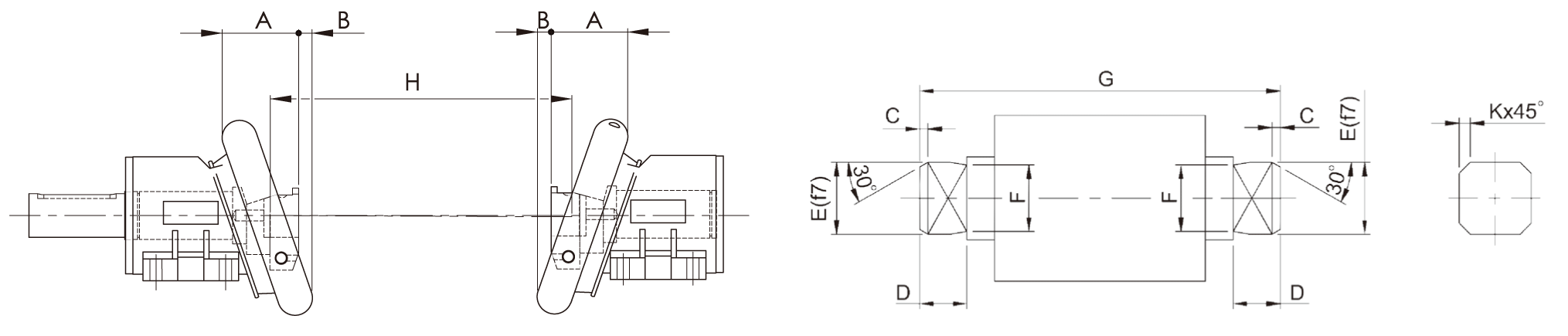

Attention & Mounting - Standard C Type
SIZE | A | B | C | D | E (f7) | E-F | H-G | K |
---|---|---|---|---|---|---|---|---|
Type 28 | 61 | 8 | 4 | 28 | 25.30 | 0.15 | 0.5 | 1 |
Type 35 | 73 | 18 | 5 | 30 | 32.38.40 | 0.2 | 0.5 | 1.5 |
Type 50 | 81 | 13 | 5 | 32 | 40.45.50 | 0.3 | 0.5 | 2 |
Type 75 | 106 | 16 | 6 | 40 | 55.65375 | 0.4 | 0.5 | 3 |
Countersink Information for Flange Mounted Type

SIZE | ϕ A | ϕ B | C | D |
---|---|---|---|---|
FLO/W 28 | 18 | 11 | 15 | 7 |
FLO/W 35 | 20 | 13 | 16 | 8 |
FLO/W 50 | 26 | 18 | 22 | 10.5 |
FLO/W 75 | 20 | 14 | 27 | 8 |
The Shaft and Safety Chuck Installment Need Attention
The shaft and safety chuck should be in a perfect alignment. The misalliance will shorten the life of both air-shaft and safety chuck. Manufacturer cannot provide the warranty if the installation doesn't follow what is recommend.

Wrong: The journal doesn't well process. The shaft and safety are not in a good alignment.

Wrong: The shaft and safety are not in a good alignment.

Correct
