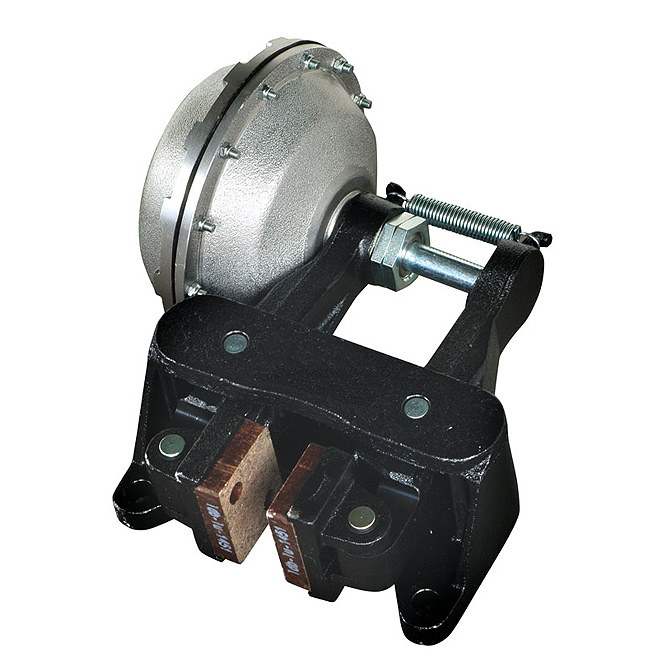

DBH 103 / 104 / 105
SPECIFICATION
| Model | DBH 103 | DBH 104 | DBH 105 |
|---|---|---|---|
| Max air pressure | 7 kg/cm2 | 7 Kg/cm2 | 7 kg/cm2 |
| Compression ratio | 1.83 | 1.83 | 1.83 |
| Disc Thickness | 10 mm | 10 mm | 10 mm |
| Disc O. D. mm | 200 mm↑ | 200 mm↑ | 200 mm↑ |
| Unit Weight | 8 kg | 8.5 kg | 9 kg |
| Y | 251mm | 263mm | 280mm |
| Z | 118mm | 141mm | 177mm |
* Aston Tech Ltd. reserve the right to change materials and specifications Without prior notice.
