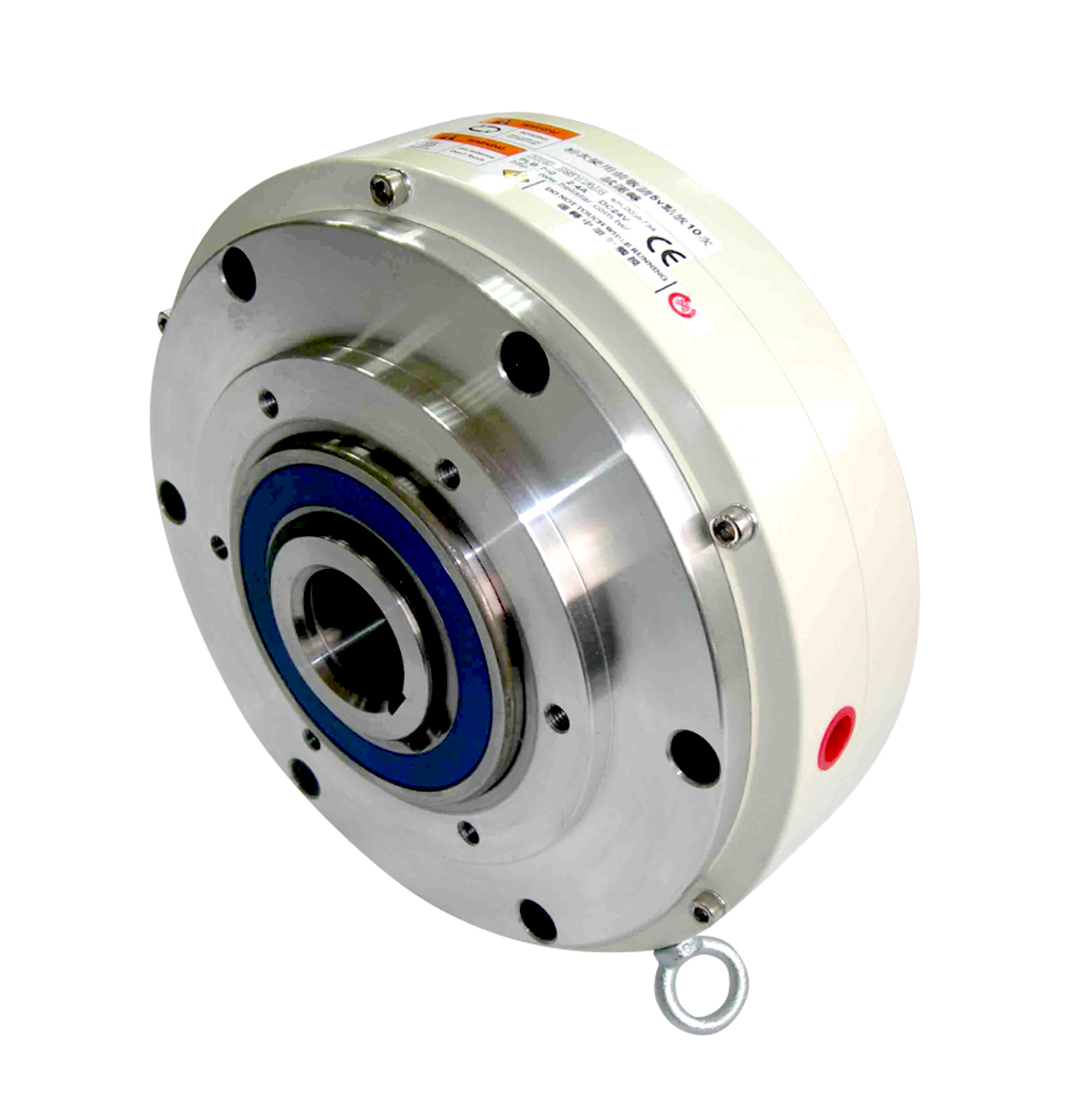

PLB-012~400
SPECIFICATION
PLB-012~200 Dimension
PLB-400 Dimension
| Type | Fix torque Nm (kgfcm) | Capability (75°C) | Monent of lnterid (kg-m2) | Weight (kg) | Max. speed of Rotation (r/min) | Weight of Magnetic Powder (g) | ||
|---|---|---|---|---|---|---|---|---|
| Electric Current (A) | Electric Power (W) | Attracting Time (S) | ||||||
| PLB-012 | 1.2(12) | 0.81 | 19.4 | 0.08 | 1.90 X 10-4 | 400 | 30 | |
| PLB-025 | 2.5(25) | 0.94 | 22.5 | 0.10 | 4.90 X 10-4 | 4.8 | 400 | 30 |
| PLB-050 | 5(50) | 1.24 | 30 | 0.12 | 1.49 X 10-3 | 7.7 | 400 | 45 |
| PLB-100 | 10(100) | 2.15 | 51.5 | 0.13 | 4.80 X 10-3 | 14.6 | 400 | 116 |
| PLB-200 | 20(200) | 2.40 | 57.6 | 0.25 | 2.50 X 10-3 | 28 | 400 | 140 |
| PLB-400 | 40(400) | 2.70 | 64.8 | 0.37 | 6.89 X 10-3 | 400 | ||
Remark :
- Compress air for cooling should be dry and de-oil.
- The idle torque of type should be less than 5% of fixed torque.
Dimension
| Type | L1 | L2 | L3 | L4 | L5 | L6 | D1 | D2 | D3 | D4 | Q | P | Axis body | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pathway | Depth | D (h7) | W (p7) | T (0-0.2) | ||||||||||||
| PLB-012 | 70 | 50 | 5 | 10 | 7 | 134 | 114 | 62 | 125/110 | 1/8 | 3-M6/M4 | 10/6 | 25 | 8 | 28.3 | |
| PLB-025 | 67 | 60 | 8 | 7.5 | 7 | 4 | 152 | 125.5 | 62 | 80 | 1/8 | 6-M6 | 10 | 25 | 8 | 28.3 |
| PLB-050 | 72 | 63 | 8 | 7 | 8.6 | 4.8 | 184 | 160 | 68 | 90 | 1/8 | 6-M6 | 10 | 30 | 8 | 33.3 |
| PLB-100 | 89 | 80 | 12 | 12 | 9 | 8 | 219 | 190 | 90 | 120 | 1/8 | 6-M8 | 15 | 35 | 10 | 38.3 |
| PLB-200 | 129 | 117.8 | 25 | 25 | 11 | 9 | 278 | 250 | 125 | 150 | 3/8 | 6-M10 | 15 | 45 | 14 | 48.8 |
| PLB-400 | ||||||||||||||||
Remark : Dimension in mm.
- Aston Tech Ltd. reserve the right to change materials and specifications without prior notice.
