POC-100~400
SPECIFICATION
| Type | Fix torque Nm (kgfcm) | Capability (75°C) | Monent of lnterid (kg-m2) | |||
|---|---|---|---|---|---|---|
| Electric Current (A) | Electric Power (W) | Attracting Time (S) | INPUT | OUTPUT | ||
| POC-100 | 10(100) | 2.40 | 57.6 | 0.25 | 3.50 x 10-2 | 2.50 x 10-2 |
| POC-200 | 20(200) | 2.70 | 64.8 | 0.37 | 9.15 x 10-2 | 6.89 x 10-2 |
| POC-400 | 40(400) | 5 | 120 | 0.40 | 2.43 x 10-1 | 1.50 x 10-1 |
| Type | Compelling air-cooling concessional slide rate of work | Weight (kg) | Max. speed of Rotation (r/min) | Weight of Magnetic Power(g) | ||
|---|---|---|---|---|---|---|
| Air pressure (pa) | Air volume (m3/min) | Ratio (W) | ||||
| POC-100 | 6 x 10-4 | 1.1 | 1,100 | 42 | 1,800 | 140 |
| POC-200 | 5 x 10-4 | 1.6 | 1,1900 | 67 | 1,800 | 225 |
| POC-400 | 1.6 x 10-5 | 2.0 | 2,100 | 110 | 1,800 | 300 |
Remark :
- Compress air for cooling should be dry and de-oil.
- The idle torque of type should be less than 1% of fixed torque for torque for POC-100, and less than 2% for POC-200/400.

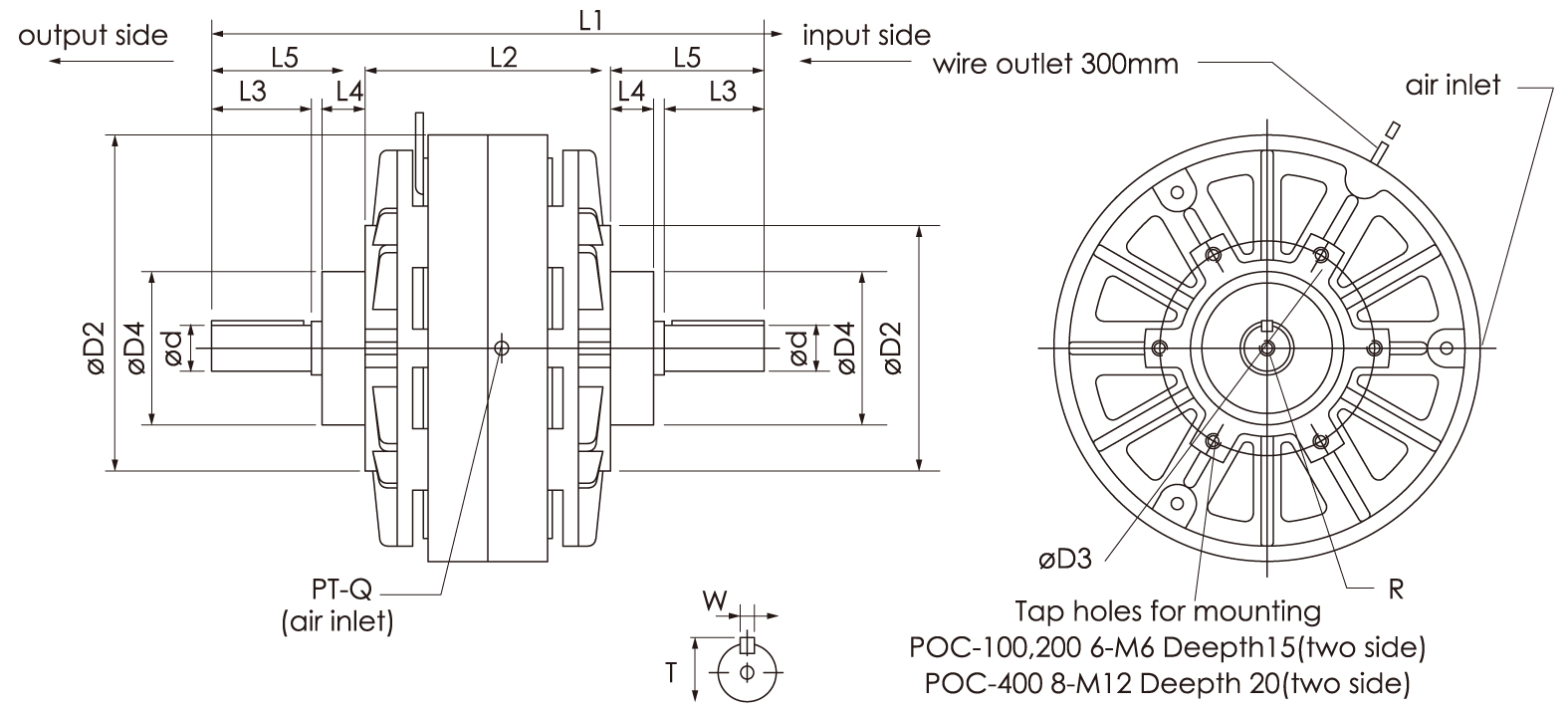

Dimension
| Type | L1 | L2 | L3 | L4 | L5 | D1 | D2 | D3 | D4 (G7) | Q (inch) | R | Axis body | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pathway | Depth | D (h7) | W (p7) | T (0-0.2) | |||||||||||
| POC-100 | 360 | 160 | 65 | 28 | 100 | 278 | 160 | 140 | 100 | 3/8 | M10 | 20 | 30 | 7 | 33 |
| POC-200 | 408 | 190 | 69 | 30 | 109 | 327 | 174 | 150 | 110 | 3/8 | M10 | 20 | 35 | 10 | 38.5 |
| POC-400 | 500 | 221 | 92 | 35 | 139 | 398 | 230 | 200 | 130 | 3/8 | M10 | 20 | 45 | 12 | 48.5 |
Remark : Dimension in mm.
- Aston Tech Ltd. reserve the right to change materials and specifications without prior notice.
