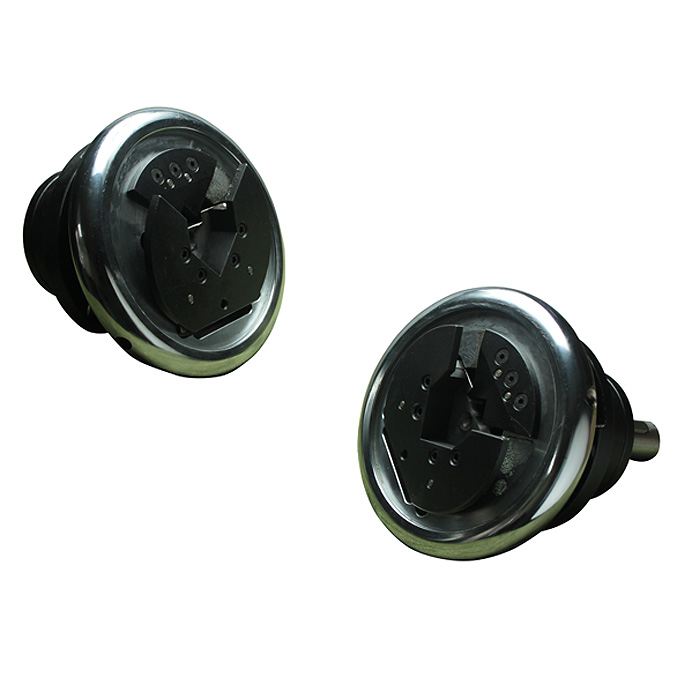

Flange & Fool Mount Chucks - VT Type
| TYPE | VTl /VT2 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| a (mm) | |||||||||
| 28 | 25 | 30 | |||||||
| 35 | 30 | 32 | 35 | 40 | |||||
| 50 | 40 | 45 | 50 | ||||||
| 75 | 50 | 60 | 80 | ||||||
VT2: a of Type 75 = max 63.5
- The standard shaft length for STO/FLO-28 -VT is 70 mm
- Length and O.D. of shaft end is available for custom-made.

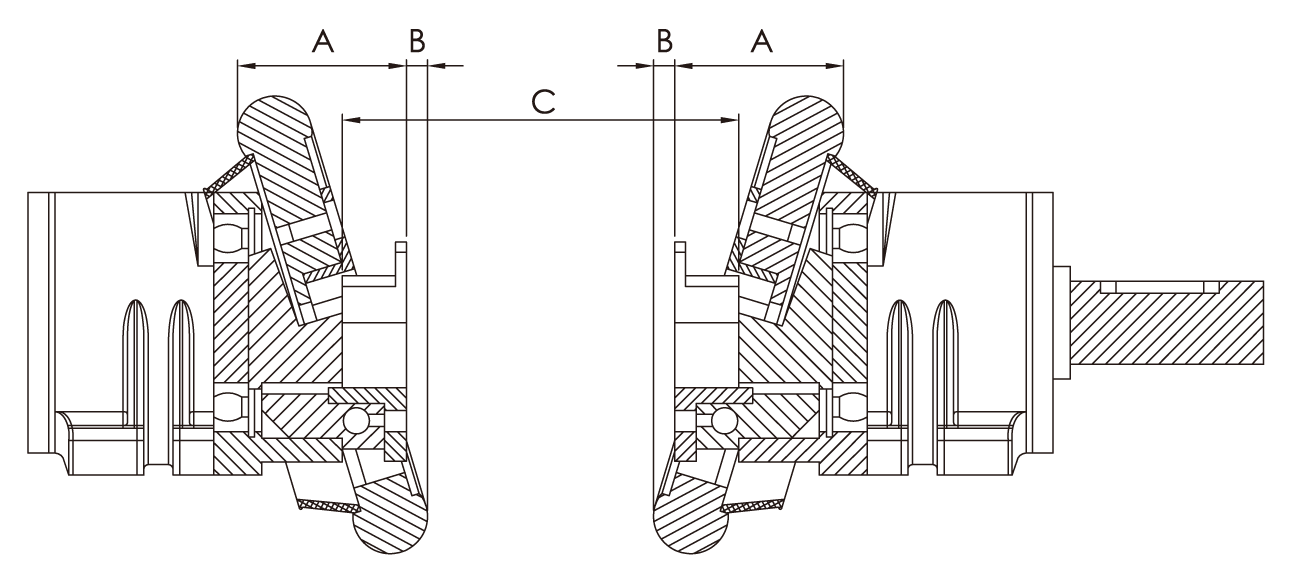

| TYPE | A (mm) | B (mm) | X=(C-D) (mm) |
|---|---|---|---|
| 28 | 61 | 8 | 0.5 |
| 35 | 73 | 13 | 0.5 |
| 50 | 81 | 13 | 0.5 |
| 75 | 106 | 16 | 0.5 |

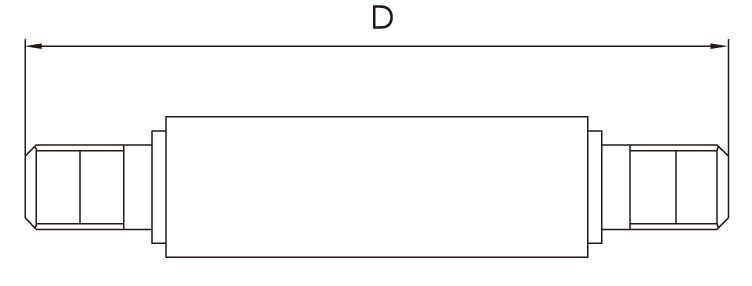

Winding Shaft Tolerance:
Journal details of VT1 /VT2
| VTl /VT2 | |||||||
|---|---|---|---|---|---|---|---|
| Size | af7 | b | c | d | e | ɸ f | g |
| 28 | 22-30 | 1 | 21.5-0.2 | 11 | 8 | a-1-0.1 / -0.2 | 4 |
| 35 | 30-40 | 1.5 | 24-0.2 | 12.5 | 10 | a-1-0.1 / -0.2 | 5 |
| 50 | 40-50 | 2 | 26-0.2 | 13.5 | 10 | a-1-0.1 / -0.2 | 5 |
| 75 | 50-80 | 3 | 34-0.3 | 17.5 | 17 | a-1-0.1 / -0.3 | 6 |
- Aston Tech Ltd. reserve the right to change materials and specifications Without prior notice.
- VT2 chuck: Max Torque = 0.7 X C Type ; Max Load = 0.8 X C Type.
