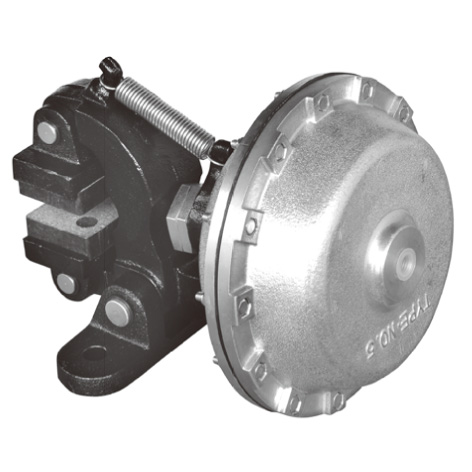

DBG 103 / 104 / 105
Introdução de produto
| Model | DBG 103 | DBG 104 | DBG 105 |
|---|---|---|---|
| Max air pressure | 7 kg/cm2 | 7 Kg/cm2 | 7 kg/cm2 |
| Compression ratio | 0.74 | 0.74 | 0.74 |
| Disc Thickness | 10 mm | 10 mm | 10 mm |
| Disc O. D. | 200 mm↑ | 200 mm↑ | 200 mm↑ |
| Weight | 5 kg | 5.5 kg | 6 kg |
| X | 5mm | 18mm | 36mm |
| Y | 145mm | 145mm | 160mm |
| Z | 118mm | 141mm | 177mm |
* Aston Tech Ltd. reserve the right to change materials and specifications Without prior notice.
