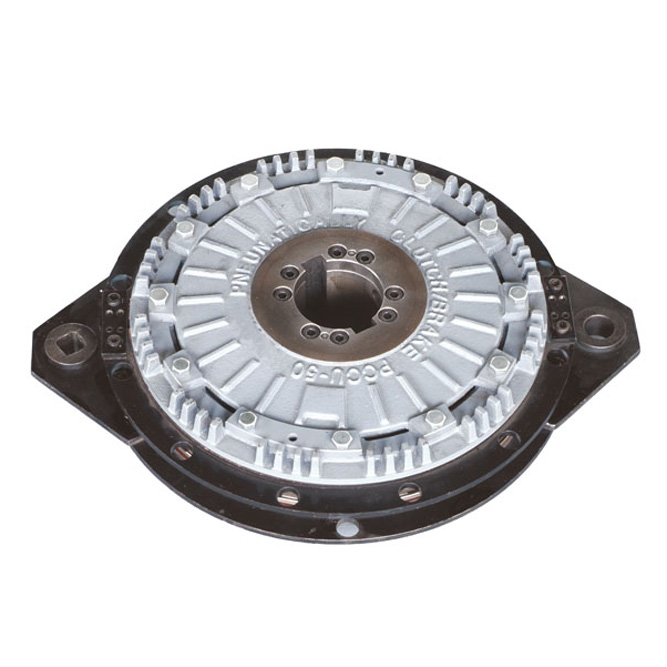

PCCU-SS-40~92
Introdução de produto
| Model | Operating Pressure | Max Speed (RPM) | Storke Volume | Iterias J-mi^2 (kgm2) | Weight (kg) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 5.5 atm | 6.0 atm | New Condition | With Max Wearing | Internal | External | |||||
| Clutch Torque (kgm) | Brake Torque (kgm) | Clutch Torque (kgm) | Brake Torque (kgm) | |||||||
| PCCU-40-SS | 55 | 35 | 63 | 35 | 2550 | 0.10 | 0.15 | 0.058 | 0.038 | 13.3 |
| PCCU-50-SS | 105 | 70 | 125 | 70 | 1750 | 0.17 | 0.30 | 0.188 | 0.095 | 25.3 |
| PCCU-61-SS | 215 | 150 | 250 | 150 | 1400 | 0.35 | 0.60 | 0.550 | 0.350 | 51.5 |
| PCCU-71-SS | 425 | 300 | 500 | 300 | 1200 | 0.65 | 1.30 | 1.500 | 1.025 | 96 |
| PCCU-74-SS | 515 | 350 | 600 | 350 | 1100 | 0.75 | 1.55 | 2.175 | 1.425 | 120.5 |
| PCCU-76-SS | 630 | 450 | 750 | 450 | 1000 | 0.95 | 1.90 | 3.125 | 2.000 | 148 |
| PCCU-79-SS | 860 | 600 | 1000 | 600 | 900 | 1.35 | 2.20 | 5.000 | 3.150 | 190.5 |
| PCCU-82-SS | 1280 | 850 | 1500 | 850 | 800 | 1.85 | 3.00 | 9.250 | 6.875 | 295 |
| PCCU-85-SS | 1700 | 1200 | 2000 | 1200 | 700 | 2.50 | 3.75 | 15.750 | 10.000 | 416 |
| PCCU-88-SS | 2600 | 1800 | 3000 | 1800 | 600 | 3.50 | 5.45 | 28.750 | 21.500 | 600 |
| PCCU-91-SS | 3900 | 2500 | 4500 | 2500 | 600 | 4.50 | 7.50 | 32.000 | 25.000 | 650 |
| PCCU-92-SS | 5400 | 3500 | 6300 | 3500 | 550 | 6.00 | 9.50 | 56.750 | 36.750 | 1005.5 |

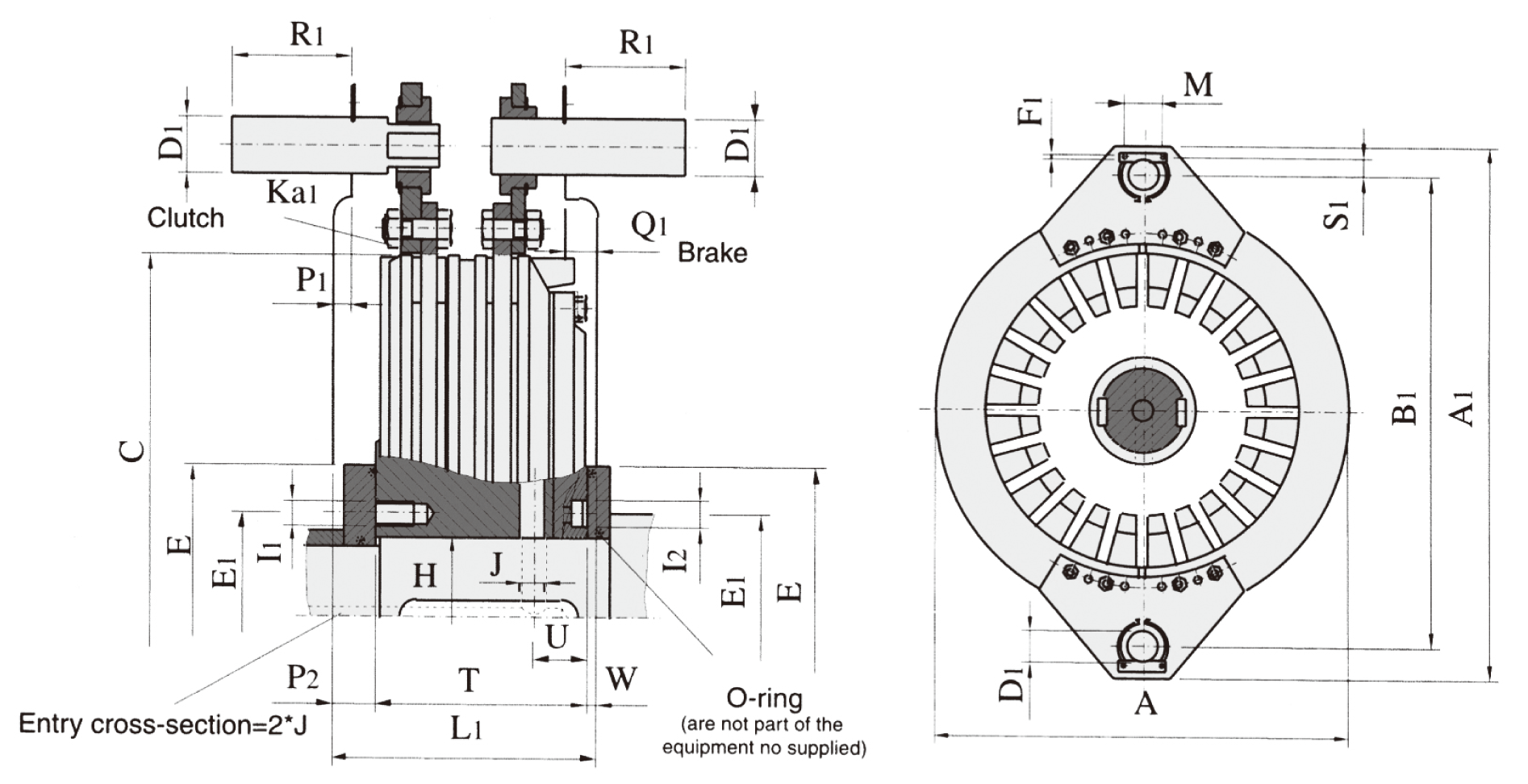

| Model | Diameters | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Remain Hole | Bore | Keyway | Government H7 | A | A1 | A2 | B | B1 | B2 | C | D | D1 | D2 | ||||
| PCCU-40-SS | 25 | 45 | 14x3.8 | 40 | 12x3.3 | 35 | 10x3.3 | 275 | 360 | 442 | 255 | 315 | 410 | 236 | 12 | 22 | 14 |
| PCCU-50-SS | 35 | 65 | 18x4.4 | 60 | 18x4.4 | 50 | 14x3.8 | 347 | 435 | 522 | 325 | 390 | 490 | 304 | 15 | 22 | 14 |
| PCCU-61-SS | 45 | 80 | 22x5.4 | 70 | 20x4.9 | 60 | 18x4.4 | 435 | 560 | 680 | 408 | 495 | 635 | 380 | 18 | 30 | 22 |
| PCCU-71-SS | 45 | 95 | 25x5.4 | 85 | 22x5.4 | 70 | 20x4.9 | 535 | 695 | 855 | 500 | 610 | 790 | 465 | 25 | 40 | 30 |
| PCCU-74-SS | 55 | 105 | 28x6.4 | 95 | 22x5.4 | 85 | 22x5.4 | 570 | 730 | 895 | 536 | 645 | 830 | 497 | 25 | 40 | 30 |
| PCCU-76-SS | 60 | 110 | 28x6.4 | 100 | 28x6.4 | 95 | 25x5.4 | 620 | 780 | 950 | 584 | 695 | 885 | 543 | 25 | 40 | 30 |
| PCCU-79-SS | 70 | 125 | 32x7.4 | 110 | 28x6.4 | 100 | 28x6.4 | 680 | 870 | 1075 | 640 | 770 | 990 | 593 | 30 | 45 | 40 |
| PCCU-82-SS | 90 | 145 | 36x8.4 | 135 | 28x6.4 | 125 | 32x7.4 | 775 | 1000 | 1235 | 725 | 880 | 1135 | 675 | 35 | 55 | 45 |
| PCCU-85-SS | 100 | 160 | 40x9.4 | 150 | 36x8.4 | 140 | 36x8.4 | 865 | 1090 | 1335 | 810 | 970 | 1235 | 755 | 40 | 55 | 45 |
| PCCU-88-SS | 115 | 180 | 45x10.4 | 160 | 40x9.4 | 150 | 36x8.4 | 1000 | 1285 | 1570 | 945 | 1140 | 1450 | 885 | 42 | 65 | 55 |
| PCCU-91-SS | 115 | 185 | 45x10.4 | 180 | 45x10.4 | 160 | 40x9.4 | 1025 | 1340 | 1670 | 965 | 1180 | 1525 | 905 | 45 | 75 | 65 |
| PCCU-92-SS | 115 | 200 | 45x10.4 | 200 | 45x10.4 | 185 | 40x9.4 | 1145 | 1460 | 1790 | 1080 | 1300 | 1645 | 1015 | 50 | 75 | 65 |
| Model | Diameters | Length | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E | E1 | F | G | I1 | I2 | J | K | L | M | O | P | P1 | P2 | Q | Q1 | Q2 | R | R1 | R2 | |
| PCCU-40-SS | 85 | 58 | M6 | 0.8 | M8 | 11 | 9 | 20 | 74 | 66.00 | 13 | 15 | 8.5 | 8.5 | 24 | 4 | 39 | 2 | 45 | 28 |
| PCCU-50-SS | 125 | 81 | M8 | 0.9 | M10 | 14 | 12 | 25 | 90 | 84.12 | 16 | 18 | 10 | 10 | 30.5 | 6.5 | 49 | 3 | 45 | 28 |
| PCCU-61-SS | 145 | 98 | M10 | 1.0 | M10 | 14 | 14 | 30 | 110 | 105.60 | 19 | 22.5 | 10 | 10 | 36.5 | 9 | 52 | 3 | 60 | 45 |
| PCCU-71-SS | 170 | 115 | M14 | 1.1 | M12 | 17 | 14 | 30 | 135 | 129.40 | 22 | 26.5 | 10 | 10 | 42.5 | 11 | 68.5 | 3 | 80 | 60 |
| PCCU-74-SS | 175 | 130 | M14 | 1.1 | M14 | 17 | 17 | 35 | 150 | 138.70 | 26 | 29.5 | 12.5 | 12.5 | 48 | 11 | 80 | 3 | 80 | 60 |
| PCCU-76-SS | 190 | 135 | M14 | 1.2 | M14 | 19.5 | 17 | 35 | 155 | 151.15 | 26 | 29.5 | 12.5 | 12.5 | 49.5 | 12.5 | 83.5 | 3 | 80 | 60 |
| PCCU-79-SS | 210 | 150 | M16 | 1.2 | M16 | 19.5 | 17 | 35 | 170 | 165.65 | 27 | 31 | 12.5 | 12.5 | 56 | 17.5 | 84 | 5 | 90 | 80 |
| PCCU-82-SS | 240 | 175 | M20 | 1.4 | M16 | 23.5 | 23 | 40 | 195 | 187.65 | 32 | 35.5 | 15 | 15 | 64.5 | 19 | 101 | 5 | 110 | 90 |
| PCCU-85-SS | 265 | 190 | M24 | 1.5 | M16 | 23.6 | 23 | 40 | 213 | 209.65 | 37 | 38 | 12.5 | 12.5 | 69.5 | 24 | 110.5 | 5 | 110 | 90 |
| PCCU-88-SS | 305 | 255 | M24 | 1.5 | M28 | 28 | 28 | 50 | 265 | 244.60 | 40 | 73 | 5 | 15 | 78 | 20 | 125 | 5 | 130 | 110 |
| PCCU-91-SS | 335 | 265 | M24 | 1.5 | M28 | 28 | 30 | 55 | 285 | 249.75 | 45 | 82 | 12.5 | 18.5 | 87 | 23.5 | 123 | 10 | 150 | 130 |
| PCCU-92-SS | 375 | 300 | M27 | 2.0 | M34 | 34 | 32 | 60 | 320 | 279.50 | 50 | 90 | 12.5 | 28.5 | 95 | 33.5 | 137.5 | 10 | 150 | 130 |
| Model | Length | Lining Thickness(mm) | Suspension knit matrix (kgm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | S1 | S2 | T | U | V | W | X | New | Old | ||
| PCCU-40-SS | 25 | 16 | 11 | 66 | 18.5 | 10 | 4 | 5 | 3.00 | 2.00 | 15.00 |
| PCCU-50-SS | 30 | 16 | 11 | 82 | 23.0 | 10 | 4 | 7 | 3.25 | 2.25 | 35.00 |
| PCCU-61-SS | 35 | 20 | 16 | 100 | 27.0 | 10 | 5 | 7 | 3.50 | 2.00 | 69.00 |
| PCCU-71-SS | 45 | 27 | 20 | 125 | 32.0 | 15 | 5 | 7 | 5.00 | 3.00 | 190.00 |
| PCCU-74-SS | 50 | 27 | 20 | 140 | 36.0 | 15 | 5 | 9 | 5.50 | 3.50 | 190.00 |
| PCCU-76-SS | 50 | 27 | 20 | 145 | 36.5 | 15 | 5 | 9 | 5.50 | 3.00 | 190.00 |
| PCCU-79-SS | 55 | 29.5 | 27 | 160 | 42.0 | 15 | 5 | 9 | 6.00 | 3.50 | 295.00 |
| PCCU-82-SS | 70 | 38.5 | 29.5 | 185 | 48.0 | 20 | 5 | 11 | 7.00 | 4.00 | 850.00 |
| PCCU-85-SS | 80 | 38.5 | 29.5 | 203 | 53.0 | 20 | 5 | 11 | 7.50 | 4.50 | 1000.00 |
| PCCU-88-SS | 70 | 43.5 | 38.5 | 255 | 67.0 | 20 | 5 | 15 | 8.00 | 5.00 | 1000.00 |
| PCCU-91-SS | 90 | 52.5 | 43.5 | 260 | 68.0 | 20 | 1.25 | 15 | 8.00 | 5.00 | 1000.00 |
| PCCU-92-SS | 100 | 52.5 | 43.5 | 295 | 76.0 | 20 | 1.25 | 17 | 8.00 | 5.00 | 1500.00 |
