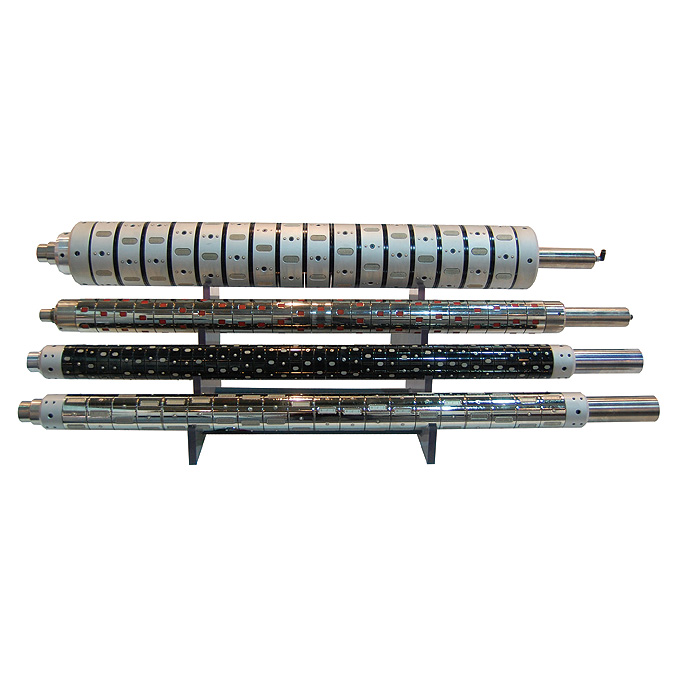

Pneumatic Differential Shaft
產品介紹
- With proper air pressure maintained, the cores slip at controlled speed. The tension can stay in low and equal to assure the excellent output.
- Slipping internally reduces the risk of damage by dust and lateral movement.
- All differential shafts are custom-made. All materials, diameters, lengths, journals, mounting types are made to your specifications.
- Shaft diameter is available from 25mm(1”) in diameter and up.
- The face length can be up to 3800mm (150”).
- The slit width is from 25mm(0.75”) and up.
- Fit the core with ID of 75mm(3”) and larger.
- Composite material for light weight requirement is optional.
