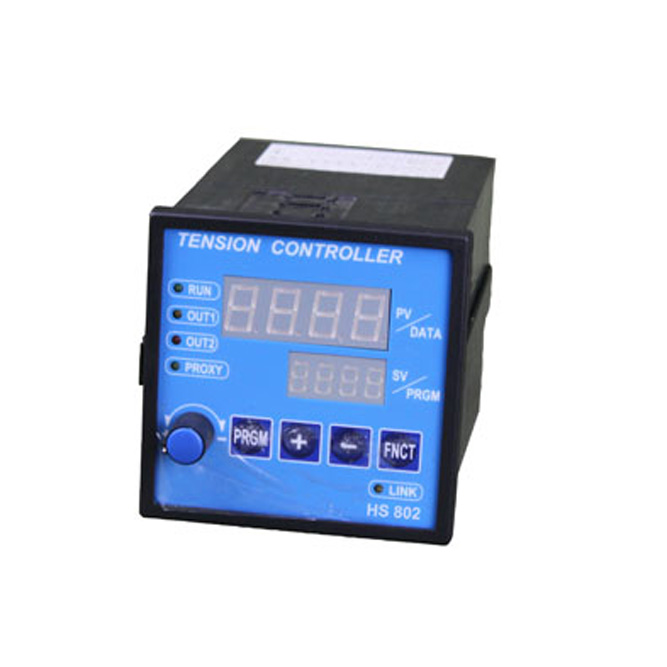

HS-802

HS-802
產品名稱 : HS-802

Feature

  • Two setting modes available for thickness of material and initial diameter.
  • The parameters can bed memorized even then if the power supply is turned off.
  • The materiaI and initiaI diameter can be widely set.
  • Multi-functional display including preset and actual tension values.
  • Adoption of locking key to prevent miss-operation of input of invalid parameter.
  • Build-in RS-485 interface, allows the communication with PLC and PC.

詢價
產品介紹
Input voltage AC 220 V + 10%; 50/6oHZ
1 Set of Load Cell Input Input range: 0 ~ 40 mV or -300~30omV floating type return and magnifying
2 Set of Analog Input (Optional) Input range : DC 0~10V, 12 bit resolution. Input mimpedance : 200K
1 Set of Analog Output (1 Set for Optional) Output range: DC 0~10V, max 10mA, 12 bit resolution
4 Sets of Digital Input Dry contact or crystal method mode (@Low Active)
2 Set of Relay Digital Output Relay A contact 5A 250VAC / 30VDC
RS-485 MODBUS Interface (Optional) MODBUS RTU protocol, data control via communication mode
Operating Site Indoor only
Operation Temperature 00C~600C
Storage Temperature 00C~600C
Humidity Under 90% RH
Weight Under 1.0kg
Working Diagram
Wiring Of Terminal


* Aston Tech Ltd. reserve the right to change materials and specifications without prior notice.
