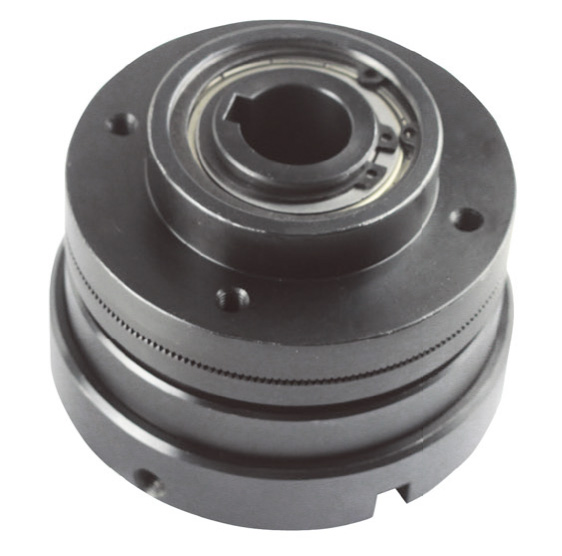

產品名稱 : BTC

Feature

  1. Tooth clutch can transmit power accurately without slippage since each tooth fits exactly to one another.
  2. Suitable for narrow space it can transmit high torque in compact size.
  3. Application : tire shaping machine, medical appliances, food machine, printing press, crusher, etc.

詢價
產品介紹

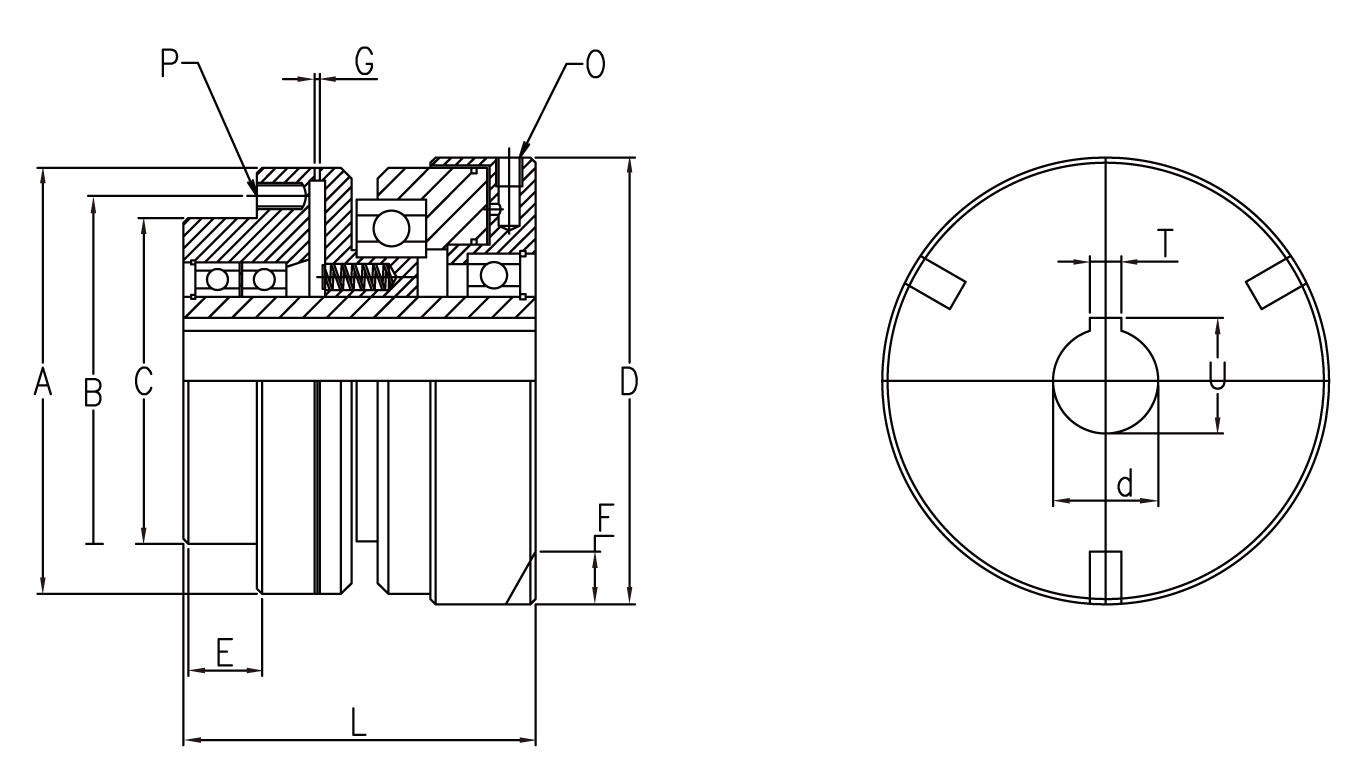

ModelTorques
(kgf-m)
Air Pressure
4kgf/cm2		ABCDEFGLOPTUdH7
(max)
BTC 10 10 80 75 62 95 13 10 0.5 67 PT 1/8 4-M 6 6 22.8 ɸ 20
BTC 20 20 110 90 75 115 18 10 0.5 80 PT 1/8 4-M 6 8 28.3 ɸ 25
BTC 40 40 125 100 80 135 18 10 0.7 95 PT 1/8 4-M 8 10 33.3 ɸ 30
BTC 60 60 137 115 90 155 20 12 0.7 105 PT 1/4 4-M 10 12 43.3 ɸ 40
BTC 80 80 155 130 110 170 23 12 1.0 125 PT 1/4 4-M 10 16 54.3 ɸ 50
BTC 120 120 178 150 130 195 23 12 1.0 125 PT 1/4 4-M 12 18 64.4 ɸ 60
BTC 200 200 212 180 155 232 30 14 1.2 145 PT 3/8 4-M 16 22 85.4 ɸ 80
BTC 300 300 242 205 180 265 35 14 1.2 185 PT 3/8 4-M 16 25 96.4 ɸ 90
BTC 400 400 280 240 210 300 40 16 1.5 190 PT 1/2 4-M 18 28 116.4 ɸ 110
