NAC 5 / NAC 10 / NAC 20 / NAC 40 nac5-40

產品介紹

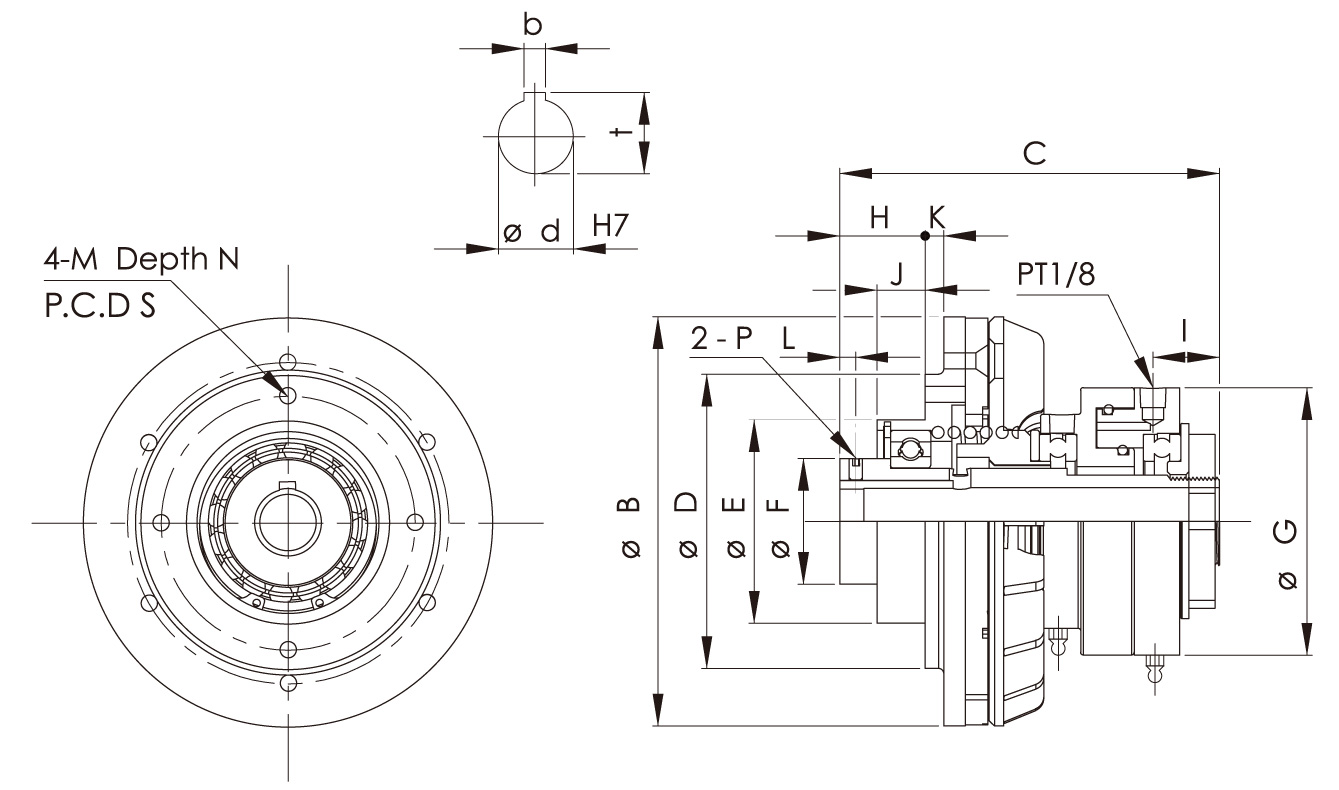

Model	Static Torque	Dimensions																			Weight(kg)
	kgfm	Dimensions
	@0.6MPa/90PSI	ɸ d(A)	B	C	D	E	F	G	H	I	J	K	L	M	N	P	S	b	t	Keyway
NAC 5	5	25	153	142	110	76	47	98	32	24	18	7	6	M6	14	M6 x 0.75	95	6	27.8	6 x 6 x 30	5.5
NAC 10	10	35	205	185	140	105	67	136	38	30.5	22	17	9	M8	16	M10 x 1.25	125	10	38.3	10 x 8 x 40	13
NAC 20	20	40	244	196	150	110	70	160	46	25	32	20	9	M10	16	M10 x 1.25	130	12	44	12 x 8 x 60	18
NAC 40	40	50	258	266	164	125	82	175	51	38	40	24	8	M10	16	M10 x 1.25	145	12	53.3	12 x 8 x 60	22
